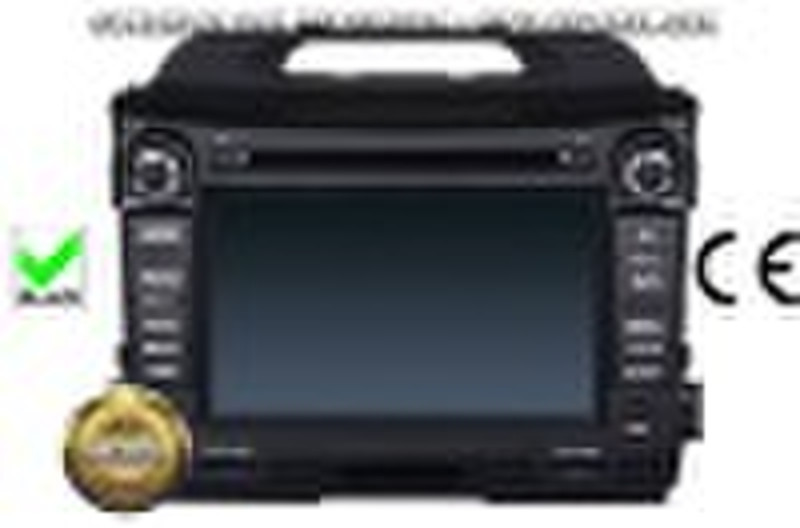

7 inch in-dash smart Car PC with multifunction, FR

2DIN 7inch HD TFT digital touch screen car PC with WinXP, wifi, 3G, GPS, DVD and Bluetooth. Main features - 2DIN car PC - 7 inch HD TFT digital touch screen - CPU: Intel Z510 1G Hz, 1G Memory - Built-in 16G SSD - Operation system: Windows XP - 3G support - Built-in GPS model (SIRFIII star) - Support Bluetooth function - Built-in Multimedia (mp3+mp4+mp5+ radio) - Built in wifi - VGA/USB/rear view camera support - Power: power supply protect system standard: +5-1AC3 output DetailedSpecifications Screen: - Size: 7Inch - HD TFT digital full touch screen - Resolution: 800*480 - Image brightness/contrast/color/saturation adjustable Operation system- Fully support Windows XP operation system- Support multi-operating system guide CPU Processor INTEL Atom Z510 ( Z530 for option) CPU Speed 1.10GHZ Core 1 Bus speed 400 Mfgtech 45nm cachesize 512kb Consumption 2W Memory+SSD - 1GB Memory - Built-in 16G SSD - SAMSUNG k9LBJ08U0M - Read rate: 100MB/S - Write rate: 60MB/S - Mini-PCIE Interface - External hard drives can be accessed by HD or SSD to 250G GPS: - Built-in high performance SIRF III Star GPS module - Receiver type: L1 (1575.42MHZ) frequency/A Code, 20-channel - Max up-date rate: 1sec - Accuracy Position<10m 2DRMS - 3D Tracking Sensitivity:-156dBm at the receiver input (typical) - Operation limits: Altitude <18000m - Velocity <515m/s - Acceleration <4g - 20 channels satellite signals can be received at the same time. Bluetooth - Built-in IEEE802.15 standard Bluetooth module - Easy for wireless connection with all kinds of Bluetooth devices, such as mobile phone, earphone, PDA, etc- The max wireless connection distance is 10m - The transmission speed can reach 1MB/s DVD-ROM (for option) - Built-in DVD Combo drive - Compatible format: DVD, CD, VCD, CD-R, CD-RW, etc - With CD recording function, easily record the data into writable CD-ROM - Super strong disk-read and error correction capability - May extend to RANBO drive Radio - FM range: 87.5-108MHZ - Three-dimensional separation of signal to noise ratio> 60db - AM range: 522-1620KHZ - SNR:> 50db - Receiver sensitivity: 30db USB+SD - 2 USB 2.0 interface, with maximum 128G compatibility - 480Mbps data transmission (depend on the device’s USB specifications) - 1 mini USB interface, can switch to standard USB interface - Front SD card slot, with maximum 8G compatibility Power& Temperature - Input voltage: 8V-26V - Normal working voltage: 12V - Storage Battery - The computer heat dispersing technology specially designed for car inside. - External super mute fan design, completely eliminate the mechanical failure - Wide running temperature:-10 Celsius--- +60 Celsius Connectivity - Combine with the in-vehicle power control signal (ACC/VCC) - AV In/Out - VGA out put - AUX out put - USB cable - Power cable - RCA back video input - RCA_RL RR audio output - RCA_FL FR audio output Accessories - English User manual- Remote control - Power cable - USB cable - Operational pencil - GPS antenna - Outline border - 3G Surfing card (for option) - Other Technology Specification: Screen: 7’ HD touch screenView Angel: Hor.75°/75°,Ver.70°/70°Contract Ratio: 600:1Brightness: 400cd/2CPU Processor: INTEL ATOM Z510 1.1G or ultra low-power Z530 1.6G Memory: Supports DDR2 533/667MHz memory, standard 1GElectronic Hard Disk: support 4G 64G volume.Motherboard: IntelUS15 chipset , integrated 3D graphics support HD playbackDisplay: 7inch/8inch HD digital LCD screen, resolution 800*480/1024*600 Audio: 4X45W amplifier output high-fidelity, a variety of EQ sound choices.Control: full touch operation interface, wireless keyboard and mouse can be optional, remote controllerConnector: 8 USB 2.0 port, SD, CF card reader, one road rearview video signal inputDVD: Build-in DVD-ROMFM: full band FM/AM radio, preset 40 stations.input voltage: 8V-26V voltage input
